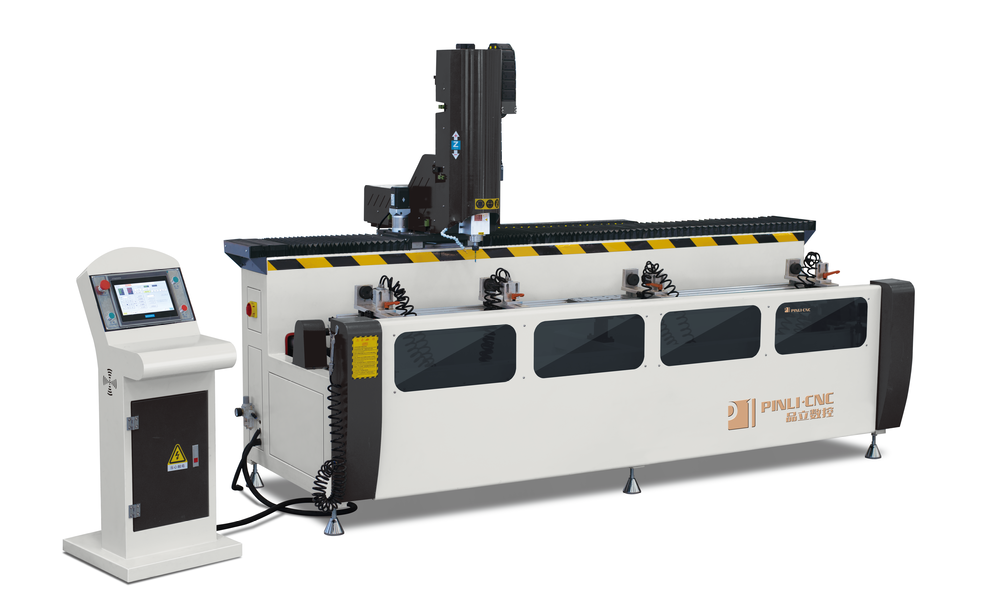

Used for processing round holes, slotted holes, lockholes and special-shaped holes of aluminum-plastic profiles, and milling and chamfering of aluminum profiles.

It is controlled by industrial computer, and the graphic library is set     on the operation interface. It is only necessary to select the shape of milling hole and input the machining size.

Adopt high-power and high-speed motorized spindle with high-quality ball screw to ensure the machining accuracy, stability and reliability of the equipment; And has strong milling ability and low milling noise.

＊Repeat positioning accuracy：±0.02mm

＊Positioning accuracy：±0.1mm

Power supply 380V/50Hz

 Air pressure 0.6~0.8MPa

 power 7.9kW

Main axis power 3.5kW

Max rotary speed 18000r/min

X-axis longitudinal travel 3500mm

 Y-axis transverse travel 370mm

 Z-axis vertical travel 330mm

 X-axis speed 0~60m/min

 Y and Z axis speed 0~24/16m/min

 Overall dimension 4400×1500×1800mm

Weight about1500kg
