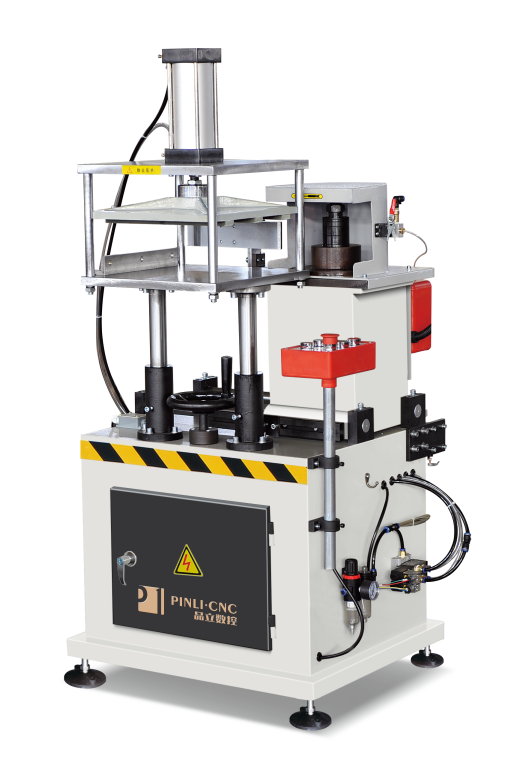

Auto End-milling Machine for Aluminum Profile

型号：
功率：
速度：
管径：
管长：
加速度：

Product details


Used for forming the end face, step face and end face groove of aluminum- plastic profile, with high-precision spindle, ensuring the machining accuracy, automatic feeding, low labor intensity, adjustable worktable up and down and convenient tool adjustment.

Power supply	380V/50Hz
Total power	2.2kW
Motor rev	2800r/min
Working pressure	0.6~0.8MPa
Diameter of main shaft	Ф32mm
Diameter of milling cutter	Ф200~Ф110mm
Motor stroke adjustment	0~320mm
Max. processing tenoning size	110mm
Cutting surface roughness	12.5μm
Overall dimension	850×740×1280mm
Weight	about200kg
