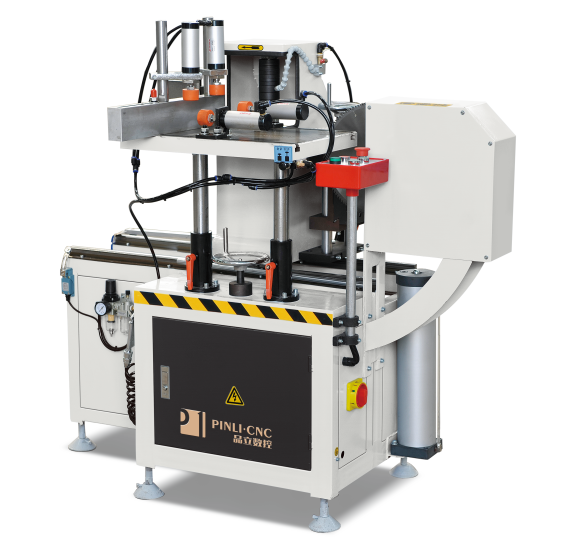

Used for sawing and milling the end faces and step faces of various aluminum profiles. One machine can complete two working procedures at the same time, with wide processing range, convenient operation and high production efficiency.
Power supply | 380V/50Hz |
Motor power | 2×2.2kW |
Motor rotary speed | 2800r/min |
Air pressure | 0.5~0.8MPa |
Saw blade specification | Φ350×Φ120×Φ32mm |
Milling cutter diameter | Φ 110 ~ Φ 200mm |
Width of milling cutter | 150mm |
Worktable size | 500×350mm |
Stroke of the workbench | 0 ~ 80mm |
Rotation angle of positioning plate | 35°~90° |
Maximum tenon size | 90× 45× 200 mm |
Overall dimension | 1200×740×900mm |
Weight | about150kg |
